Sunward Rotary Earth Soil Drilling 600mm Auger Bit Gray Color

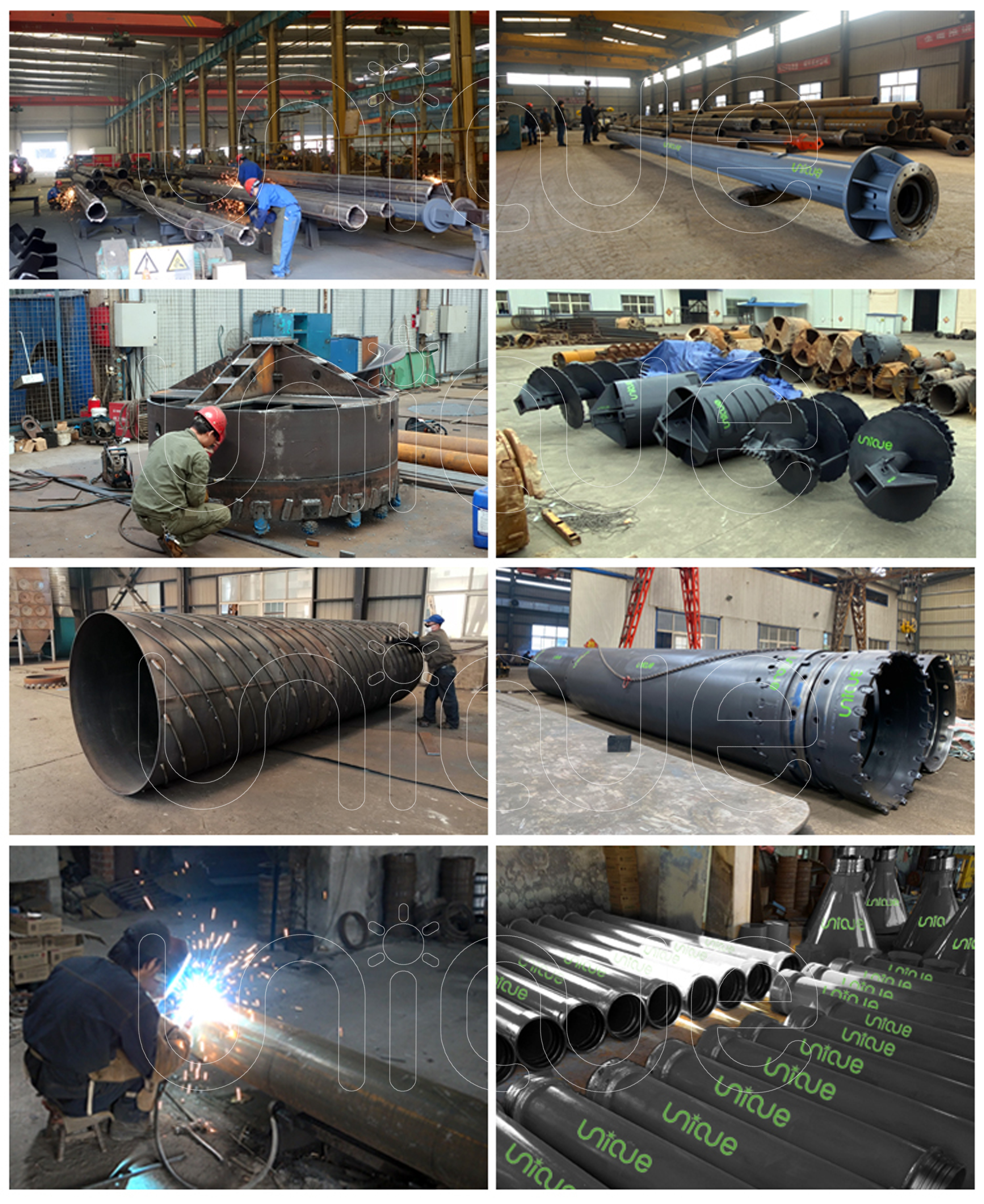

1. CO2 gas shielded welding and submerged arc welding

2.Materials: Q345B, wear-resistant blocks or wear-resistant welding wires to increase wear resistance.

3.Different drilling teeth angle can be customized according to requirements and application.

4. Customized optional for special tools

5. Different Kelly Box available

6. Different drilling teeth optional

7. Drawing confirmation before production

8. Experienced engineers can provide one-stop drilling tool solutions

9. Diversified augers and buckets are optional.

10. Short leading time:7 working days

11. 24-hour online after-sales service

12. Rock auger: the breaking of boulder and boulder hard rock in the hole.

13. Soil auger: soil layer and sand layer, and mainly for the construction of soil layer with less groundwater.

Clay/Soil/Earth/Rock Drilling Auger adopt the high-carbon steel and special drilling bits angle to keep the drilling strength and efficiency.

There are three types of drilling auger:

1) Conical Auger (Single cut auger and Double cut auger )
Drilling Diameter Range: 600~2500mm
Main Applications:
Single Cut Augers and Double Cut Augers are suitable for drilling in medium to strong rock (15~60MPa)
Double Cut Augers are recommended for bigger diameters uncased boreholes.

2) Flat or Butterfly Auger: (Single-Cut Auger, Double Cut Auger, Double Cut Auger without Rock Pilot)
Main Applications:
Flat or Butterfly Rock Augers are suitable for drilling in weak fractured rock and very dense sand and gravel (Less than 5 MPa)
Double Cut Augers are mainly used for bigger diameter uncased boreholes and secant piles.3- Double Cut Auger without rock pilot are recommended for fractured rock or moderately weak to moderately strong rock (5~50 MPa)

3) Continuous flight auger and auger head
Flat or Butterfly Clay Auger (Single Cut Auger and Double Cut Auger)
Main Applications:
The Single Cut and Double Cut Augers are suitable for drilling in clay, silt and loose to medium dense sand and gravel.
The Single Cut and Double Cut Augers with side cutters are suitable for drilling in hard clay, silt and medium to high dense sand and grave.
